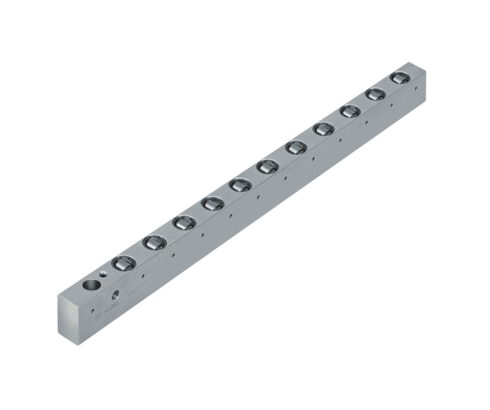

ローラーバー、メカ式

with spring pack, loads up to 66 kN/m

Roller bar with spring pack for medium loads and flexible horizontal movement of the dies. When preloaded, the rollers project over the bed level by up to 2 mm. When the die is clamped, the rollers are pressed into the bar body against the spring force until they are flush with the bed Level.
Roller spacing and orientation are flexible.

Advantages

• Easy and safe die change
• No hydraulic supply required
• Variant program with many selection possibilities
• Variable length in a single piece design up to 2900 mm
• Slot depth, ball spacing and bar length configurable for every application
• Low weight (version in aluminium)

Select with the Ball and Roller bar configurator
